Specifications:

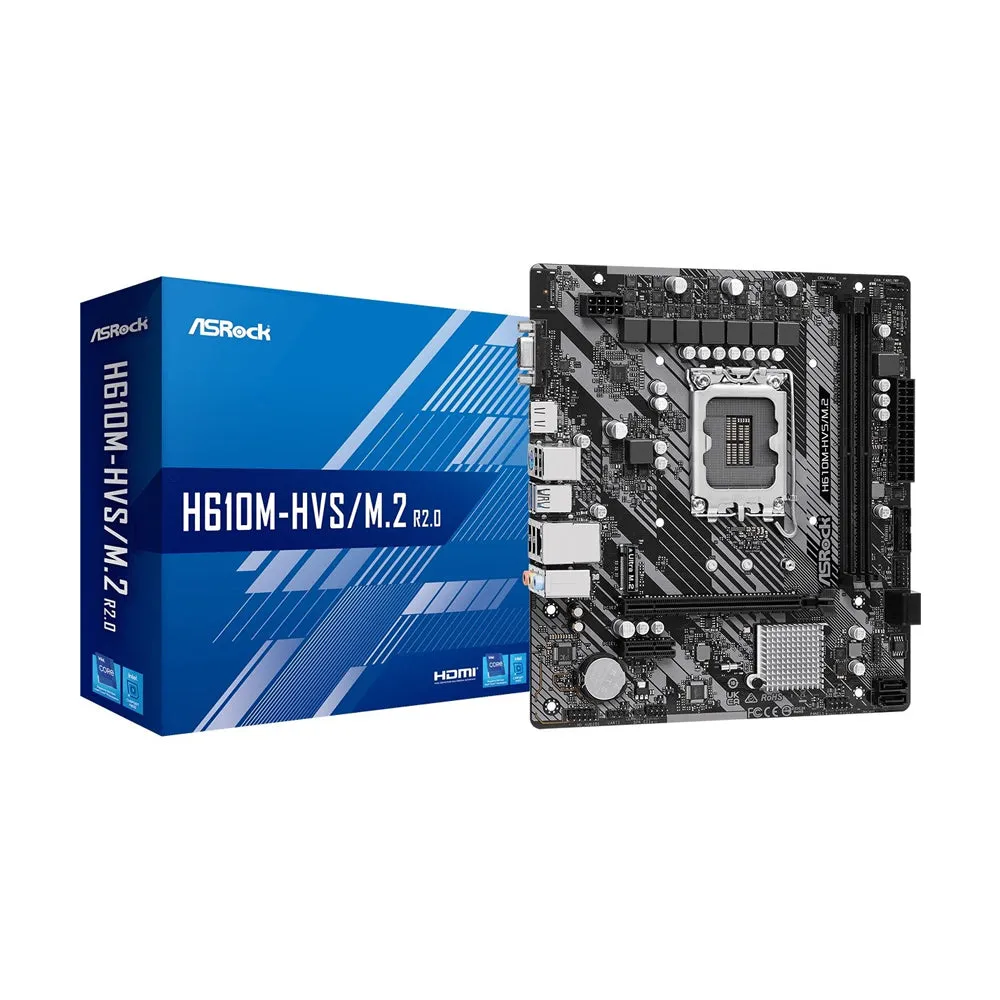

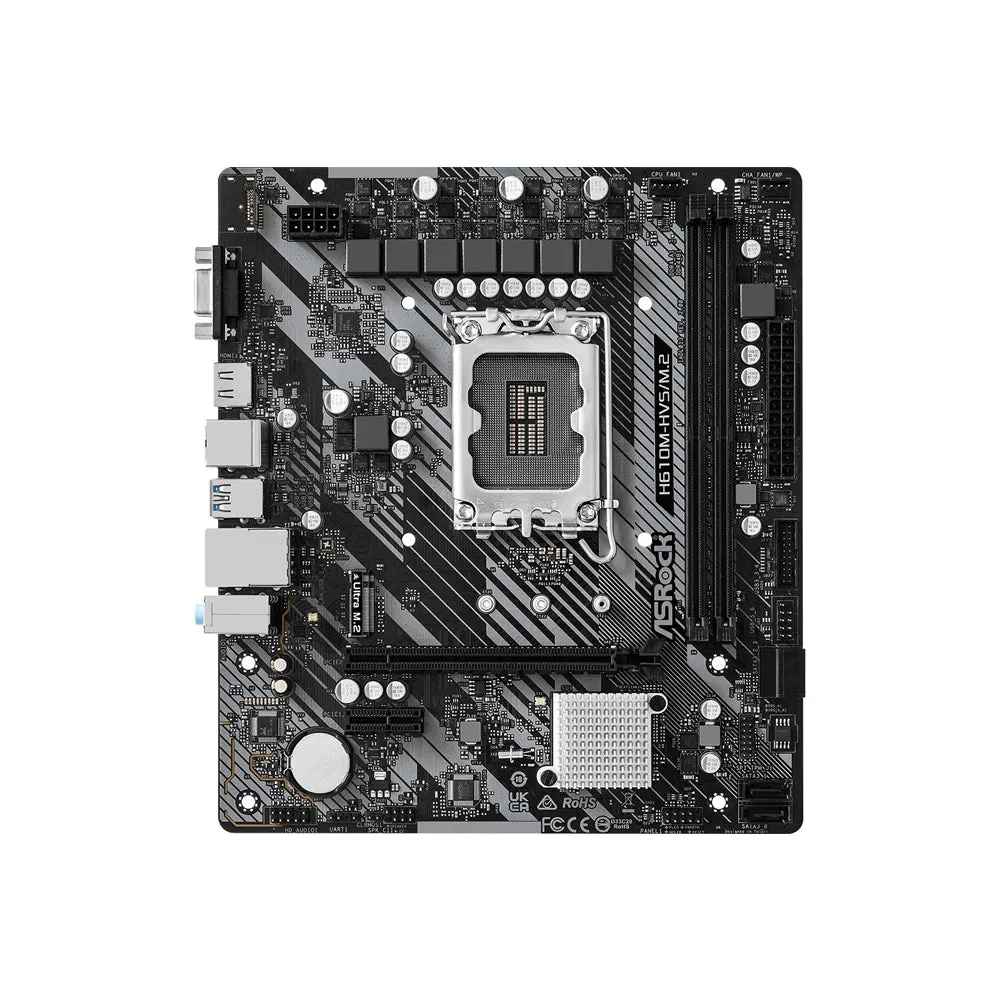

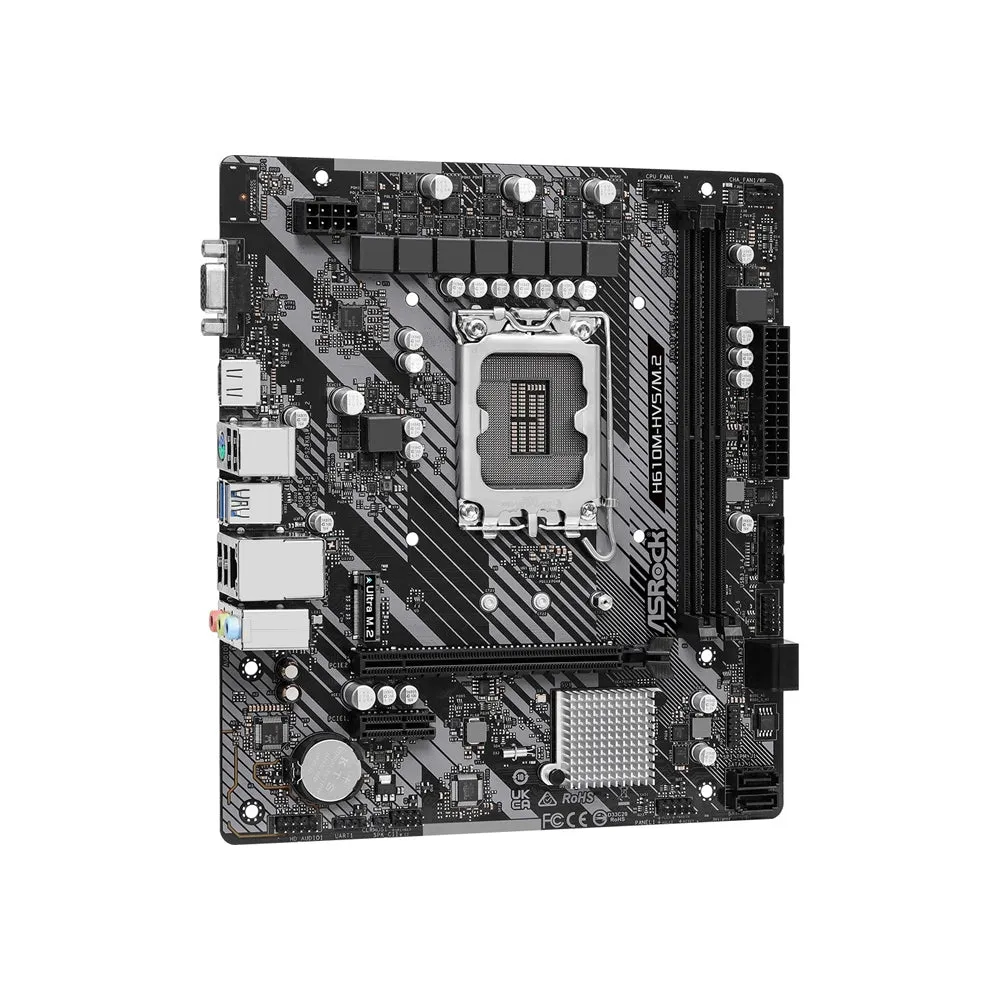

• Product Number: H610M-HVS/M.2 R2.0


Processor

• Processor manufacturer: Intel
• Processor socket: LGA 1700
• Compatible processor series
  • Intel® Celeron®
  • Intel® Core™ i3
  • Intel® Core™ i5
  • Intel® Core™ i7
  • Intel® Core™ i9
  • Intel® Pentium®

• Maximum number of SMP processors: 1

 Memory

• Supported memory types: DDR4-SDRAM

• Number of memory slots: 2

• Supported memory clock speeds: 3200

• Maximum internal memory: 64 GB

• Unbuffered memory: Yes

 Storage controllers

• Supported storage drive types: HDD & SSD

• Supported storage drive interfaces: SATA III

 Internal I/O

• USB 2.0 connectors: 1

• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

• Number of SATA III connectors: 4

• Front panel audio connector: Yes

• ATX Power connector (24-pin): Yes

• Number of chassis fan connectors: 1

• Chassis intrusion connector: Yes

• TPM connector: Yes

• 12V power connector: Yes

• Number of M.2 (M) slots: 1

 Rear panel I/O ports

• USB 2.0 ports quantity: 4

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

• Ethernet LAN (RJ-45) ports: 1

• PS/2 ports quantity: 1

• VGA (D-Sub) ports quantity: 1

• HDMI ports quantity: 1

• HDMI version: 2.1

 Network

• Ethernet LAN: Yes

• Ethernet interface type: Gigabit Ethernet

• LAN controller: Realtek RTL8111H

• Wake-on-LAN ready: Yes

• Wi-Fi: No

Features

• Motherboard chipset: Intel H610

• Audio chip: Realtek ALC887 / Realtek ALC897

• Audio output channels: 7.1 channels

• PC health monitoring

  • CPU

  • Fan

  • Temperature

• Motherboard form factor: micro ATX

• Motherboard chipset family: Intel

• Windows operating systems supported

  • Windows 10 x64

  • Windows 11 x64

 Expansion slots

• PCI Express x1 (Gen 3.x) slots: 1

• PCI Express x16 (Gen 4.x) slots: 1

Weight & dimensions

• Width: 197 mm

• Depth: 188 mm
